Price (3 channels): 79,00 €
VAT: EU only
Shipping:
Stock:
Please send us an email to order. Your payment will be processed with .

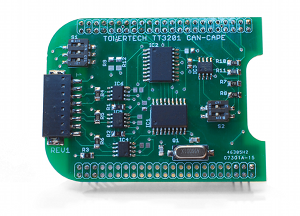

TT3201 CAN Cape

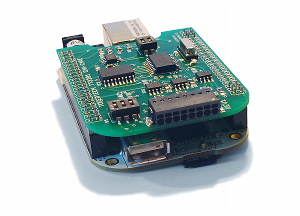

Multi channel CAN Bus Cape for the BeagleBone and BeagleBone Black

The TT3201 CAN Cape gives your BeagleBone 3 CAN Bus channels,
using both the AM335x CAN controller and two Microchip's MCP2515.

The user's manual is available here.

Notice The TT3201 is compatible with the BeagleBone Black, please read below for the details.

Features

  • 3 CAN bus channels (1xAM335x, 2xMCP2515)
  • User-selectable bus termination for each channel
  • Cape configuration eeprom
  • Strong spring-cage connector
  • SocketCAN compatible

BeagleBone Black Compatibility

The TT3201 is compatible with the BeagleBone Black.
However, HDMI audio will be disabled due to hardware resource conflicts. Video will work fine. The drivers will be integrated upstream. Meanwhile you will receive a new kernel and modules from us.

Software

SocketCAN is fully supported and can be used with the can-utils or by your own code.

The cape is correctly recognized and configured at boot if you use the latest kernel available for the BeagleBone.

Customizations

This product can be customized when purchased in quantity. We can build it with different CAN transceivers, number of channels and slew rate controlling resistors. If interested, please send us an email.

Applications

  • CAN Bus development
  • NMEA2000
  • SAE J1939

Compatibility

  • BeagleBone
  • BeagleBone Black
